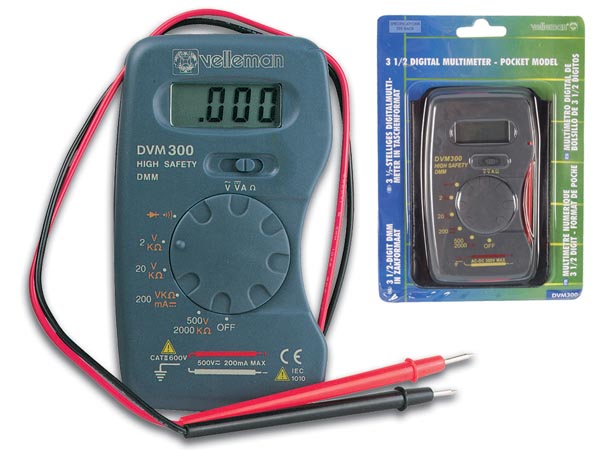

Velleman, 3 1/2 Digital Multimeter - Pocket Model DVM300 - All Spectrum Electronics
Velleman, 3 1/2 Digital Multimeter - Pocket Model
Model # DVM300
 $9.99
Velleman, 3 1/2 Digital Multimeter - Pocket Model
Click to enlarge

Features

  • automatic polarity indication
  • fits into your pocket
  • DC and AC voltage measurements: up to 500V
  • DC current: max. 200mA
  • resistance measurements: up to 2Mohm
  • diode and continuity test
  • Important safety information

Specifications

  • DC voltage: 2/20/200/500V
    • basic accuracy: 0.5%
    • input impedance: -
    • maximum input: 500V
  • AC voltage: 200/500V
    • basic accuracy: 1.2%
    • input impedance: -
    • frequency range: 45 to 1000Hz
    • maximum input: 500Vrms
  • DC current: 200mA
    • basic accuracy: 2.0%
    • overload protection: 200mA
  • AC current: -
    • basic accuracy: -
    • overload protection: -
  • resistance: 2k/20k/200k/2000k
    • basic accuracy: 1.0%
    • overload protection: 250Vrms
  • capacitance: -
    • accuracy: -
  • inductance: -
    • accuracy: -
  • frequency: -
    • basic accuracy: -
    • overload protection: -
  • temperature: -
    • basic accuracy: -
  • overrange: yes "1"
  • continuity buzzer: yes
  • transistor test: no
  • diode test: yes
  • low-battery indication: yes
  • maximum display: 1999
  • LCD display size: 1.4" x 0.6"
  • ranging mode: manual
  • data hold: no
  • backlight: no
  • dimensions: 2.8" x 4.7" x 0.8"
  • weight (with battery): 3.4oz.
  • power supply: 12V battery
  • packing: box
  • accessories: manual / test leads / battery / cover
  • auto power-off: no

Files:
Infosheet in PDF (DVM300-info.pdf)
User Manual in PDF (dvm300-um.pdf)
This product was added to our catalog on Monday 16 September, 2013.
