MULTI-PURPOSE SECURITY KEYPAD HAA85 - All Spectrum Electronics
MULTI-PURPOSE SECURITY KEYPAD *Currently unavailable. We don't know when or if this item will be back in stock.*
Model # HAA85
 $39.99

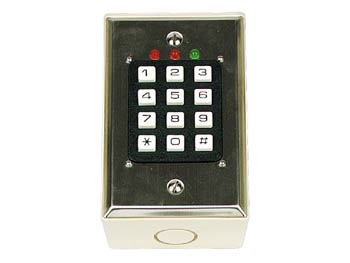

MULTI-PURPOSE SECURITY KEYPAD
Click to enlarge
*Currently unavailable.*
*We don't know when or if this item will be back in stock.*

SELF-CONTAINED DUAL OUTPUT SYSTEM FOR DOOR OPENER AND OTHER SECURITY CONTROL APPLICATIONS
The EEPROM memory protects the stored data in case of power failure. Over 100 million combinations are possible for the user codes (code 1 & code 2) and the master code (it also acts as the super user code). User code 1 can be altered to act as a duress code that activates the duress output. This output is connected to an alarm system or a telephone dialer. With tamper switch. Complete with plastic case for installation on a flat surface. Two separate relay outputs. Audible key operation.

Specifications

  • relay outputs:
    • output 1: 2 Amp
    • output 2: 1 Amp, N.C. & N.O. dry contacts, DC 30V max.
  • operating voltage: DC 12V (DC 10-14V)
  • current drain: 10 - 100mA
  • duress output: NPN transistor with open collector output, switches to ground (-) when activated, 100mA/25V DC max.
  • codes available: User 1 & 2, Super User, Master, Duress and Accelerated codes
  • code combinations: 111111100
  • dimensions: 4.6" x 2.9" x 1.9"
  • weight: 6.5oz (net), 8.1oz (gross)
User Manual in PDF

This product was added to our catalog on Tuesday 01 May, 2007.
